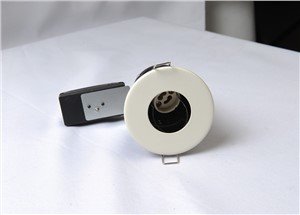

1. Downlights can be divided into 2 inches, 2.5 inches, 3 inches, 4 inches, 5 inches, 6 inches, 8 inches, and 10 inches according to their size. Generally, there are three parameters related to the size, the outer diameter, the opening size, and the thickness. That is the size of the hole dug during ceiling construction.

2. According to the classification of lamp beads used in downlights, it can be divided into three types: high-power lamp beads, low-power lamp beads and integrated lamp beads, among which high-power can be divided into 1W, 2W, 3W single, good supplier's chip And the package can make the lamp bead reach the power of 5W and 10W; the low power can be divided into 3014, 3528, 5050, etc. according to the package form; the integrated lamp bead, that is, COB. In terms of appearance and heat dissipation, theoretically, low-power lamp beads have no light spots, and heat dissipation is relatively better, and they are more and more popular with customers.

3. Downlights are generally fog masks, but the fog surface is at the cost of reducing light efficiency, so some downlights are also made into transparent covers.

LED packaging technology introduction

1. Expand the crystal, open the dense array of chips a little bit to facilitate the crystal bonding.

2. Die bonding, point conductive/non-conductive glue on the bottom of the bracket (conductivity depends on whether the chip is a top-bottom PN junction or a left-right PN junction) and then put the chip into the bracket.

3. Short bake, so that the chip does not move when the glue cures the bonding wire.

4. Wire bonding, use gold wire to connect the chip and the support.

5. Pre-test, preliminary test whether it can be bright.

6. Fill glue, wrap the chip and the bracket with glue.

7. Long bake, let the glue solidify.

8. Post-test, test whether it can be bright or not and whether the electrical parameters meet the standard.

9. Light and color separation, to separate products with roughly the same color and voltage.

10. Packaging.
